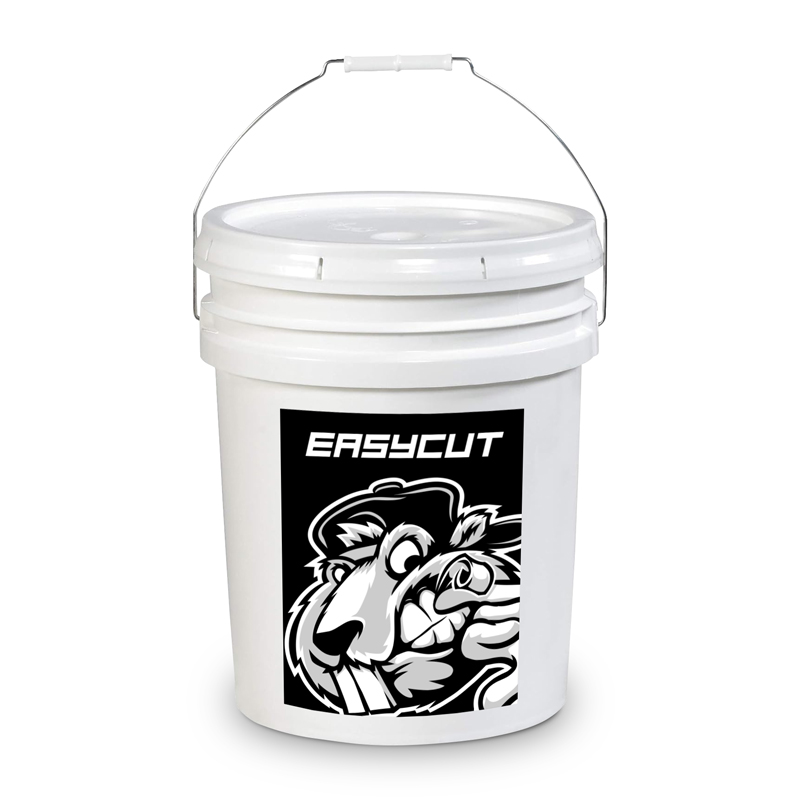

Dielectric fluid for die-sinker EDM machines EASYCUT EDM601, pail (5 GAL / 19 L)
The universal dielectric fluid (oil) EDM601 is intended for electroerosive processing on die-sinking machines, as well as on wire-cutting machines using oil technology. It is suitable for roughing, semi-finishing, and finishing electroerosion machining of steels, hard alloys, and non-ferrous materials. Mixing is possible without consequences with some other dielectrics incl. Blaser SOREPI LM and Blasospark GT250.
The universal dielectric fluid (oil) EDM601 is intended for electroerosive processing on die-sinking machines, as well as on wire-cutting machines using oil technology. It is suitable for roughing, semi-finishing, and finishing electroerosion machining of steels, hard alloys, and non-ferrous materials. Mixing is possible without consequences with some other dielectrics incl. Blaser SOREPI LM and Blasospark GT250.
| Size | 208l / 55gal |
|---|---|
| Workpiece Material | P – Steel, N – Non-Ferrous, M – Stainless Steel, H – Hardened Materials, K – Cast Iron, S – High-Temp Alloys |
| Mineral oil content, %** | Does not contain |
| Flash point COC [°C] | 102 |
| Copper corrosion (3 h / 100 °C) | 1a (slight tarnish) |
| Kin. Viscosity at 40 °C [mm²/s] | 2.3 |
| Odor | Very low |
| Appearance | Colourless, clear |
| Marke | EASYCUT |
| Artikeltyp | Kühlschmierstoffe für die Metallbearbeitung |
| Size | 208l / 55gal |
|---|---|
| Workpiece Material | P – Steel, N – Non-Ferrous, M – Stainless Steel, H – Hardened Materials, K – Cast Iron, S – High-Temp Alloys |
| Mineral oil content, %** | Does not contain |
| Flash point COC [°C] | 102 |
| Copper corrosion (3 h / 100 °C) | 1a (slight tarnish) |
| Kin. Viscosity at 40 °C [mm²/s] | 2.3 |
| Odor | Very low |
| Appearance | Colourless, clear |
| Marke | EASYCUT |
| Artikeltyp | Kühlschmierstoffe für die Metallbearbeitung |
EDM601 DATA SHEET | EDM601 MATERIAL SAFETY DATA SHEET
Short Description
The universal dielectric fluid (oil) EDM601-5 is intended for electroerosive processing on die-sinking machines, as well as on wire-cutting machines using oil technology. It is suitable for roughing, semi-finishing, and finishing electroerosion machining of steels, hard alloys, and non-ferrous materials.
Composition Features
- Low content of aromatic hydrocarbons (weak odor)
Product Properties / Advantages
- High flash point at low viscosity (safe operation)
- Excellent cooling and washing properties
- Low tendency to vaporization and evaporation
- Reliable electrical insulation properties (processing with small gaps and high current density)
- Protection of electrodes from wear
- Excellent surface roughness after treatment
- Good filterability, high resistance to aging and oxidation
- Low corrosion activity to the materials of the electrode and the workpiece, compatible with machine components
Technical Data
- Type of concentrate: Colorless, transparent
- Density at 15 °C [kg/m 3 ]: 817
- Kinematic viscosity at 40 °C [mm 2 /s]: 2.3
- Flash point [°C]: 102
- Corrosion of copper (3 hours / 100 °C): 1a (light initial staining)
Recommendations / Features
- Mixing is possible without consequences with some other dielectrics incl. Blaser SOREPI LM and Blasospark GT250
Shelf life / Storage conditions
- Stable for 12 months when stored at a temperature of 5 °C to 40 °C in unopened containers.
Comments
- Minor variations in color and appearance are possible due to the raw materials chosen. However, these have no influences on the functionality of the product
- All information on safe and proper handling can be found on the MSDS
DESIGNED IN GERMANY
