Milling Tool Holders
Auf Bestellung

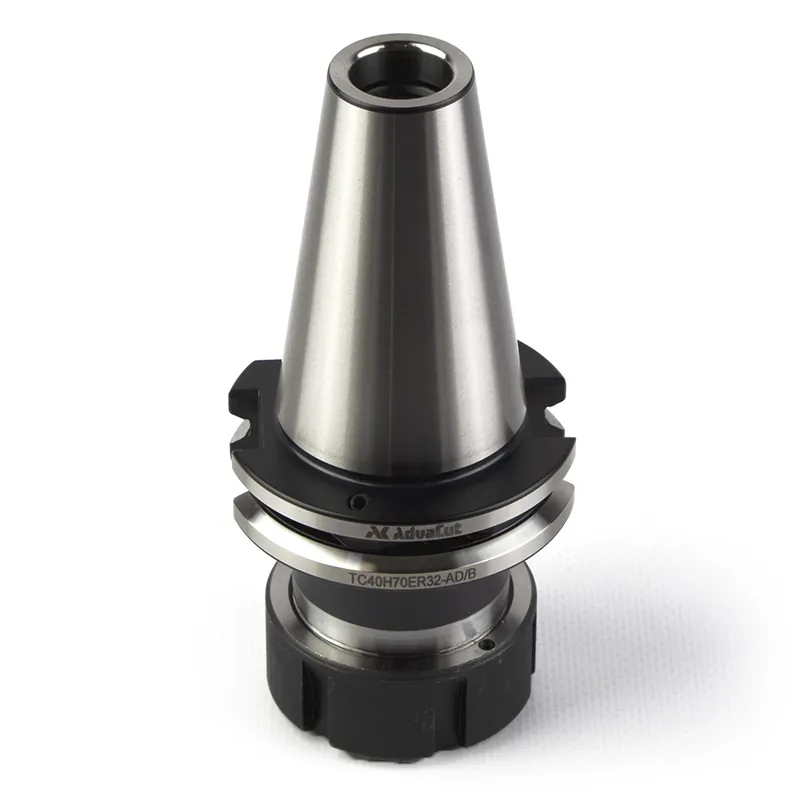

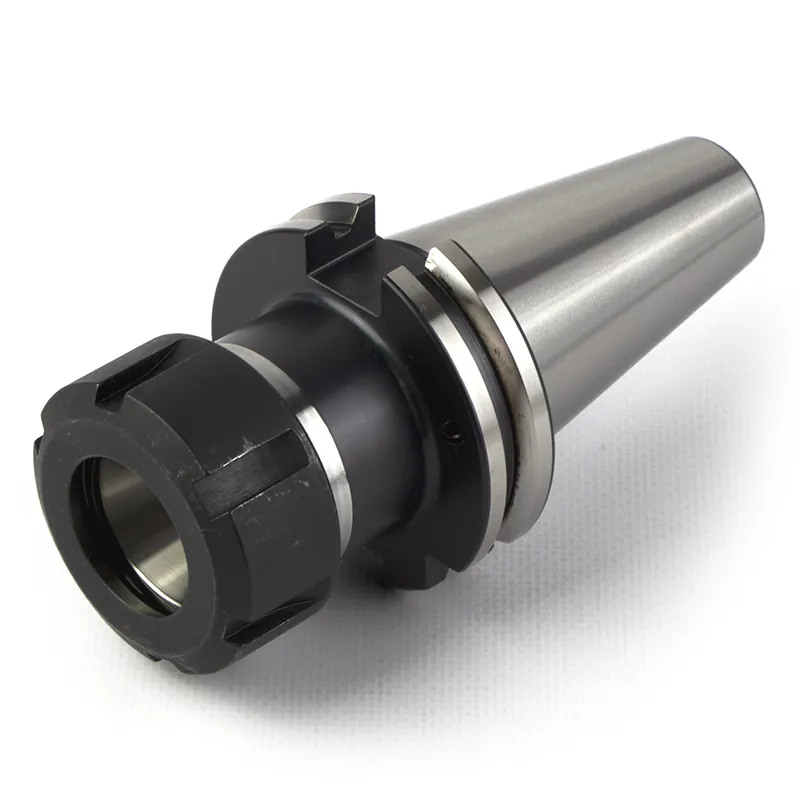

SK40 (DIN69871) Collet Chuck with standard nut, ER32, ø2-20 mm, H=70mm; AD; G6,3
ER32K40H70
EASYCUT - Teilenummer # ER32K40H70
Auf Bestellung
Preis inkl. MwSt, Lieferung an Ihre Adresse
Produkteigenschaften
| Mill holder type | Collet chuck |
|---|---|
| Collet standard | ER32 |
| Mill Spindle Standard | SK40 (DIN 69871) |
| Marke | EASYCUT |
| Artikeltyp | Milling Tool Holders |
Product Attributes
| Mill holder type | Collet chuck |
|---|---|
| Collet standard | ER32 |
| Mill Spindle Standard | SK40 (DIN 69871) |
| Marke | EASYCUT |
| Artikeltyp | Milling Tool Holders |
Сollet chuck with an SK taper DIN69871 is designed for a milling machine. This arbor is intended for ER25 collets according to DIN6499 standard, suitable for clamping milling cutters, drills, and other tools with a cylindrical shank. The overhang from the spindle is 100 mm, with a runout within 0.003 mm.
The set for the chuck includes a nut for ER25-UM collets. ER25 collets, a wrench, and a pin gauge are purchased separately.
ER32 collet chuck is designed for reliable centering and securing of cutting tools. The chuck form AD features coolant supply through a through-hole. The AD/B form has coolant supply through both the through-hole and flange. The chuck is balanced to G6.3/15000 or G2.5/25000 rpm.
