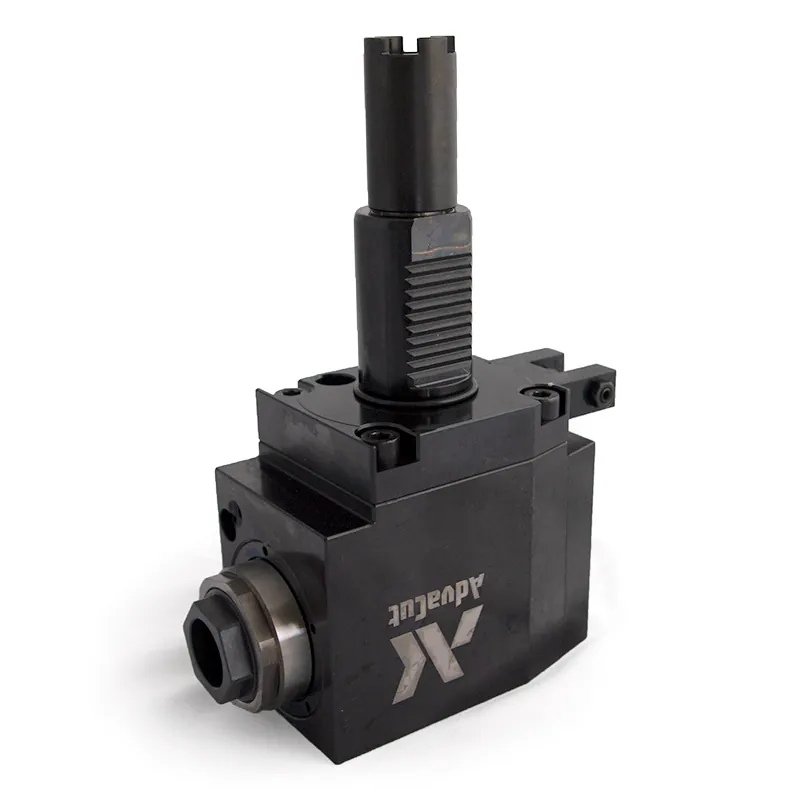

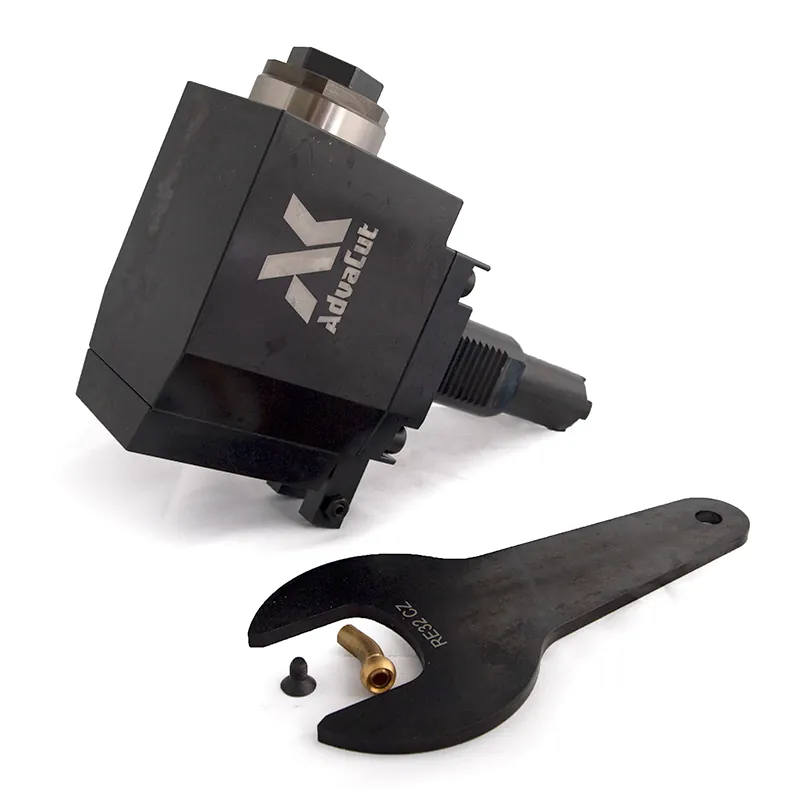

Angle (90°) live driven tool for VDI40 turret with 117.55mm coupling, ER32, RATIO 1:1
This angle live toolholder for radial machining fits to HAAS Automation SL, ST, DS, TL (sub spindle) series lathes equipped with C/Y axis and VDI 40 turret. The length of coupling = 117.55mm. It allows milling, drilling and threading without additional setup on a milling machine. ER32 collet chuck holds up wide range of cutting tools. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.
This angle live toolholder for radial machining fits to HAAS Automation SL, ST, DS, TL (sub spindle) series lathes equipped with C/Y axis and VDI 40 turret. The length of coupling = 117.55mm. It allows milling, drilling and threading without additional setup on a milling machine. ER32 collet chuck holds up wide range of cutting tools. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.
| Coolant line | External |
|---|---|
| Turret type | VDI40 |
| Torque, Nm | 70 |
| Gear ratio | 1:1 |
| Compatible lathe types | HAAS |
| Orientation | Radial |
| RPM | 6000 |
| Collet standard | ER32 |
| Marke | EASYCUT |
| Artikeltyp | Live Tooling |
| Coolant line | External |
|---|---|
| Turret type | VDI40 |
| Torque, Nm | 70 |
| Gear ratio | 1:1 |
| Compatible lathe types | HAAS |
| Orientation | Radial |
| RPM | 6000 |
| Collet standard | ER32 |
| Marke | EASYCUT |
| Artikeltyp | Live Tooling |
