BMT45 Boring Bar & Indexable Drill Block, Ø 32 mm, 65 mm Centre Height

Name: BMT45 Boring Bar & Indexable Drill Block, Ø 32 mm, 65 mm Centre Height
Brand: EASYCUT
SKU: 128-21530
Price: 240.28 EUR
Availability: InStock

128-215309 unit in stock

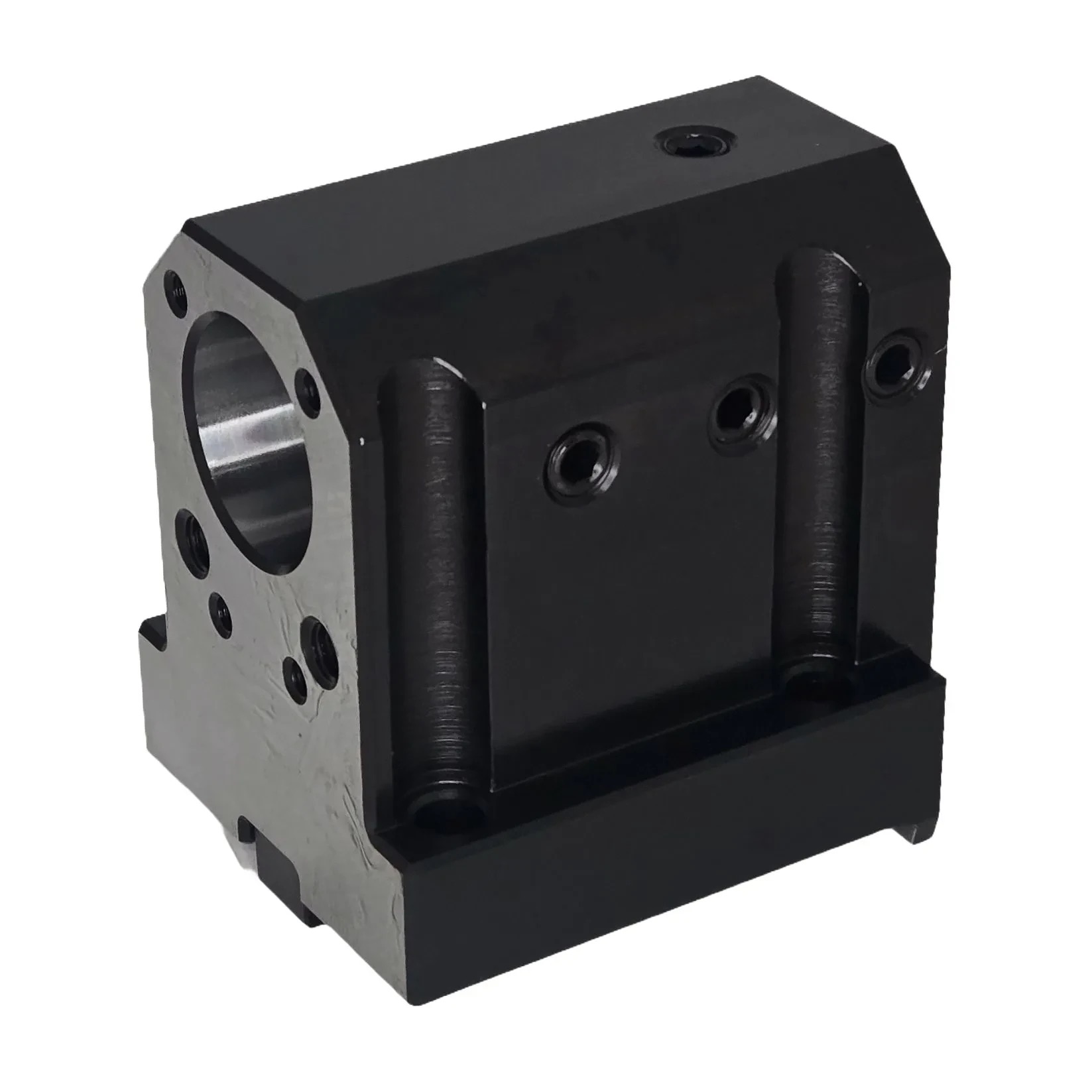

Bolt-on block for BMT45 turrets: Ø 32 H7 bore for round-shank boring bars and indexable drills, 65 mm centre height, two externally routed coolant channels. Three side clamping screws plus one screw from the top that stops the drill body from twisting. For Doosan Lynx and Puma MX1600, HAAS ST-10 and ST-15, Hardinge and SMEC PL1600 with BMT45.

€240.28 incl. taxes

€349.99

Retail price as of 11.03.2026

9 unitab Lager Berlin (BE)

Product Attributes

Technical Description

Reviews

Turret Type

BMT45

Toolholder Type

Boring Bars, Indexable Drills

Bore Diameter, mm

Centre Height, mm

Brand

EASYCUT

Item type

Drehmaschine Werkzeughalter

Technical Description

BMT45 boring bar and indexable drill block 128-21530 - dimensioned drawing with D = Ø 32 H7, H1 = 90 mm, B = 56 mm, 65 mm centre height

Bolt-on block for lathes with a BMT45 turret. The Ø 32 H7 bore takes round-shank boring bars and indexable drills; smaller shank diameters go in with reducer sleeves.

Turret interface	BMT45
D — bore	Ø 32 H7
Centre height	65 ±0.02 mm
H1 — overall height	90 mm
B — width	56 mm
Footprint	90 × 75 mm
Clamping	3 side + 1 top
Coolant	2 channels, external
Weight	3.5 kg

Screw from the top. An indexable drill cutting into solid material produces high torque that wants to twist the drill body in the bore. On top of the three side clamping screws, one screw from above therefore presses on the clamping flat of the drill shank. On the drawing it sits in the top view, on the centreline.

Mounting. Four screws onto the turret disc, aligned by a key. What decides the fit is the BMT45 hole pattern on your own turret — the machine list below is a guide.

Spare parts. Clamping screw 1: 811-102036 (M10×12) · clamping screw 2: 811-102035 (M10×10) · key 814-203450 · screw for key 811-101016.

Machines with a BMT45 turret, per the manufacturer's catalogue, plus HAAS:

Doosan — LYNX 2100LYA/LYB (24-position) · LYNX 2100MA/220 (LMSA, LMSC) · LYNX 220 (LSYA, LSYC) · LYNX 220 (M, LM) · LYNX 220 (MA, LMA, MC, LMC) · LYNX 220 (YA, YC, LYA, LYC) · PUMA MX1600 (T, ST) — models with a BMT45 turret — PL1600 (M, CM) — ST-10 · ST-15
