BMT65 Facing Tool Block, 25 x 25 mm

Name: BMT65 Facing Tool Block, 25 x 25 mm
Brand: EASYCUT
SKU: 128-31802
Price: 266.08 EUR
Availability: InStock

128-318022 unit in stock

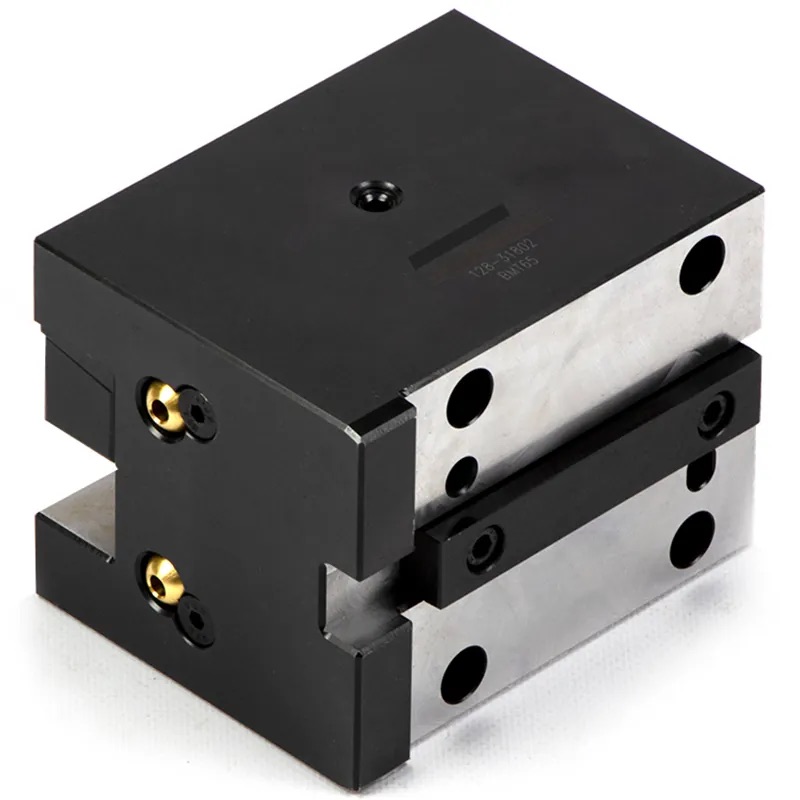

Bolt-on block for BMT65 turrets for turning tools with a 25 x 25 mm square shank, clamped from the side by two wedges with two M10 screws each. Tool seat parallel to the spindle axis and running through the block – the tool can project to the left or the right; for facing, grooving and OD turning. External coolant, nozzles on both sides. For Doosan Puma, HAAS ST and DS, Hyundai WIA, Hwacheon, Maxsin, SMEC, Tongtai and Victor with BMT65.

€266.08 incl. taxes

€387.57

Retail price as of 11.03.2026

2 unitab Lager Berlin (BE)

Product Attributes

Technical Description

Reviews

Turret Type

BMT65

Toolholder Type

OD Facing

Square Shank Size, mm

25 x 25

Brand

EASYCUT

Item type

Drehmaschine Werkzeughalter

Turret Type:BMT65

Technical Description

BMT65 facing tool block 128-31802 - dimensioned drawing with 25 x 25 mm seat, 95 mm height, 127 x 95 mm footprint

Bolt-on block for lathes with a BMT65 turret, for turning tools with a 25 x 25 mm square shank. The tool seat runs parallel to the spindle axis — for facing, grooving and OD turning.

Turret interface	BMT65
Square shank	25 × 25 mm
Overall height	95 mm
Footprint	127 × 95 mm
Clamping	2 wedges, 2 × M10 each
Coolant	external, both sides
Weight	6.8 kg

Tool left or right. The seat runs through the whole block. The tool can be clamped to project to the left or to the right, and there are coolant nozzles on both sides. One block covers both directions.

Mounting. Four screws onto the turret disc, aligned by a key. What decides the fit is the BMT65 hole pattern on your own turret — the machine list below is a guide.

Machines with a BMT65 turret, per the manufacturer's catalogue:

Doosan — PUMA 2100/2600 (M, LM, MS, LMS) · PUMA 2100/2600 (Y, LY, SY, LSY) · PUMA 300 (M, MS, MB, MC) · PUMA 3100 (M, LM, LY, XLM, XLY, ULM, ULY) · PUMA MX2000/2500 · PUMA MX2600 (T, ST) · PUMA TT2500 (MS/SY) · PUMA V400 (M) · PUMA VT450 (M, 2SP) · PUMA TT2000
Hwacheon — CUTEX-240 · HI-TECH200 / T2 Series · HI-TECH300/400 · VT-450
Hyundai WIA — L2100SY · SKT-200/250TTSY · SKT-250/300 (L, M) · SKT-250/300 (MS) · L300M / MS · LM 2000 / 2500 TTM · 2500 TTMS / 2500 TTSY
Maxsin — models with a BMT65 turret
SMEC / Samsung — SL25 / SL35 · PL 20/25M · PL 35LM · PL 2000/2500Y
Tongtai — TMT2000
— VTURN-A26 (YSCM) — ST-20 · ST-25 · ST-30 · ST-35 · DS-30Y · ST-20Y · ST-25Y · ST-30Y · ST-35Y
