BMT65 OD Turning Tool Block, 25 x 25 mm

Name: BMT65 OD Turning Tool Block, 25 x 25 mm
Brand: EASYCUT
SKU: 128-41801
Price: 242.25 EUR
Availability: InStock

128-418011 unit in stock

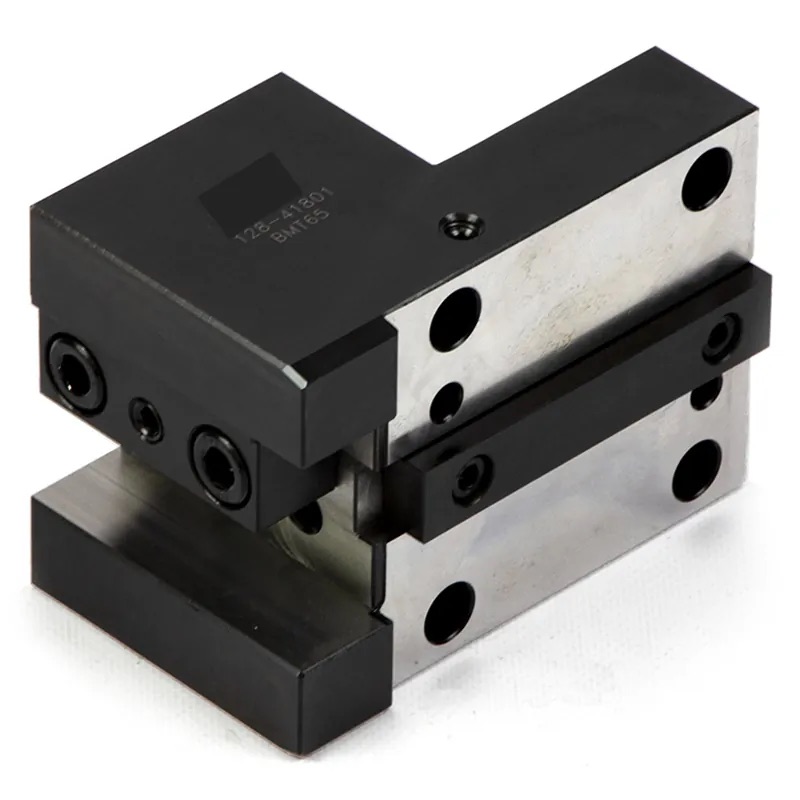

Bolt-on block for BMT65 turrets for turning tools with a 25 x 25 mm square shank, tool perpendicular to the spindle axis – for OD turning. Clamped by a wedge with two M10 screws, two externally routed coolant channels. Twin version with two seats: 128-41802. For Doosan Puma, HAAS ST and DS, Hyundai WIA, Hwacheon, Maxsin, SMEC, Tongtai and Victor with BMT65.

€242.25 incl. taxes

€352.82

Retail price as of 11.03.2026

1 unitab Lager Berlin (BE)

Product Attributes

Technical Description

Reviews

Turret Type

BMT65

Toolholder Type

OD Turning

Square Shank Size, mm

25 x 25

Brand

EASYCUT

Item type

Drehmaschine Werkzeughalter

Turret Type:BMT65

Technical Description

BMT65 OD turning tool block 128-41801 - dimensioned drawing with 25 x 25 mm seat, 75 mm height, 131 x 95 mm footprint

Bolt-on block for lathes with a BMT65 turret, for turning tools with a 25 x 25 mm square shank. The tool stands perpendicular to the spindle axis — for OD turning.

Turret interface	BMT65
Square shank	25 × 25 mm
Overall height	75 mm
Footprint	131 × 95 mm
Clamping	1 wedge, 2 × M10
Coolant	2 channels, external
Weight	5.3 kg

One seat. For two tools on one station — for example one for the main spindle and one for the sub-spindle — there is the twin version 128-41802 with two seats facing opposite directions.

Mounting. Four screws onto the turret disc, aligned by a key. What decides the fit is the BMT65 hole pattern on your own turret — the machine list below is a guide.

Spare parts. Clamping wedge 832-007360 · key 814-203310 · screw for key 811-101027.

Machines with a BMT65 turret, per the manufacturer's catalogue:

Doosan — PUMA 2100/2600 (M, LM, MS, LMS) · PUMA 2100/2600 (Y, LY, SY, LSY) · PUMA 300 (M, MS, MB, MC) · PUMA 3100 (M, LM, LY, XLM, XLY, ULM, ULY) · PUMA MX2000/2500 · PUMA MX2600 (T, ST) · PUMA TT2500 (MS/SY) · PUMA V400 (M) · PUMA VT450 (M, 2SP) · PUMA TT2000
Hwacheon — CUTEX-240 · HI-TECH200 / T2 Series · HI-TECH300/400 · VT-450
Hyundai WIA — L2100SY · SKT-200/250TTSY · SKT-250/300 (L, M) · SKT-250/300 (MS) · L300M / MS · LM 2000 / 2500 TTM · 2500 TTMS / 2500 TTSY
Maxsin — models with a BMT65 turret
SMEC / Samsung — SL25 / SL35 · PL 20/25M · PL 35LM · PL 2000/2500Y — TMT2000 — VTURN-A26 (YSCM) — ST-20 · ST-25 · ST-30 · ST-35 · DS-30Y · ST-20Y · ST-25Y · ST-30Y · ST-35Y
