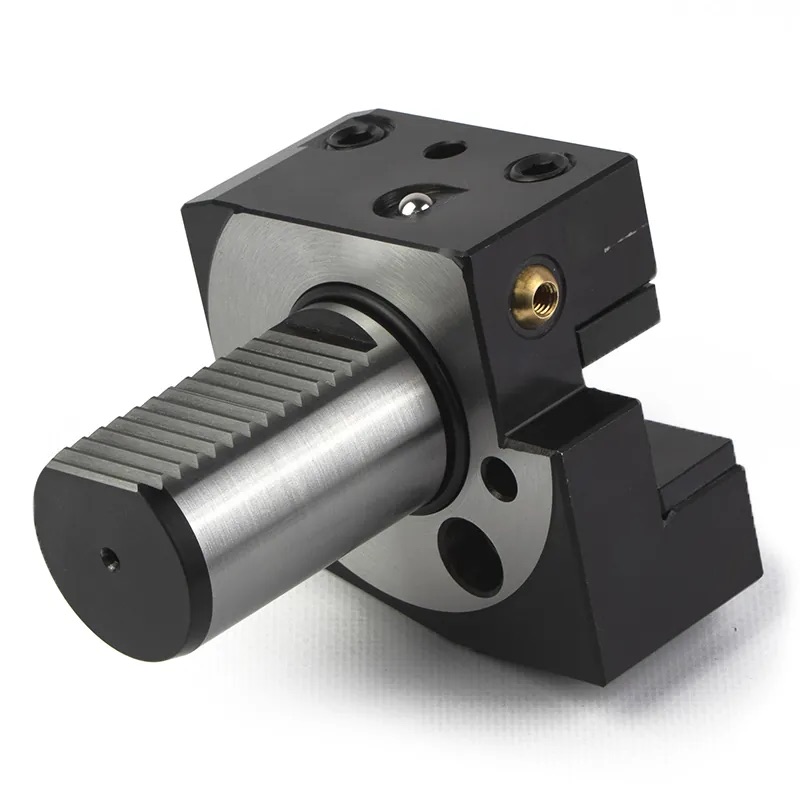

VDI 40 Toolholder for OD Turning, 25 x 25 mm, Form B2 Left Hand, Short

Name: VDI 40 Toolholder for OD Turning, 25 x 25 mm, Form B2 Left Hand, Short
Brand: EASYCUT
SKU: B2-40x25x44
Price: 60.82 EUR
Availability: InStock

B2-40x25x4411 unit in stock

Radial toolholder, form B2: with the shank serration facing up, the tool seat points to the left. Takes turning tools with a 25 x 25 mm square shank, working height 44 mm from the turret face, with one externally routed coolant channel. For VDI 40 turrets with the holder bores in the face of the turret disc.

€60.82 incl. taxes

€88.60

Retail price as of 11.03.2026

11 unitab Lager Berlin (BE)

Product Attributes

Technical Description

Reviews

Turret Type

VDI 40

Toolholder Type

OD Turning

Square Shank Size, mm

25 x 25

Working Height, mm

Brand

EASYCUT

Item type

Drehmaschine Werkzeughalter

Technical Description

The serration on the VDI shank runs along one side. With that side facing up in the turret, the tool seat points to the left — hence the left-hand version, form B2. One look at the serration on your own turret station tells you which way the insert will face before you order. Form B1 is the same size with a mirrored seat.

As a radial design, the holder belongs in VDI 40 turrets whose holder bores sit in the face of the turret disc. Turrets with bores around the periphery need an axial design. Machine make does not matter, DIN 69880 does.

Coolant is routed through the holder to the cutting edge.

Dimensions to DIN 69880

Dimension drawing of VDI 40 toolholder form B2, short version, to DIN 69880

d1	Ø 40 h6
h1	25 mm
l1	22 mm
l2	44 mm
b1	85 mm
b2	42.5 mm
b3	12.5 mm
h5	32.5 mm
h6	48 mm
Coolant	through
Weight	2.3 kg
