BOT 35 x 76 Facing Tool Block, 25 x 25 mm

Name: BOT 35 x 76 Facing Tool Block, 25 x 25 mm
Brand: EASYCUT
SKU: KMS-T00068
Price: 189.97 EUR
Availability: InStock

KMS-T000682 unit in stock

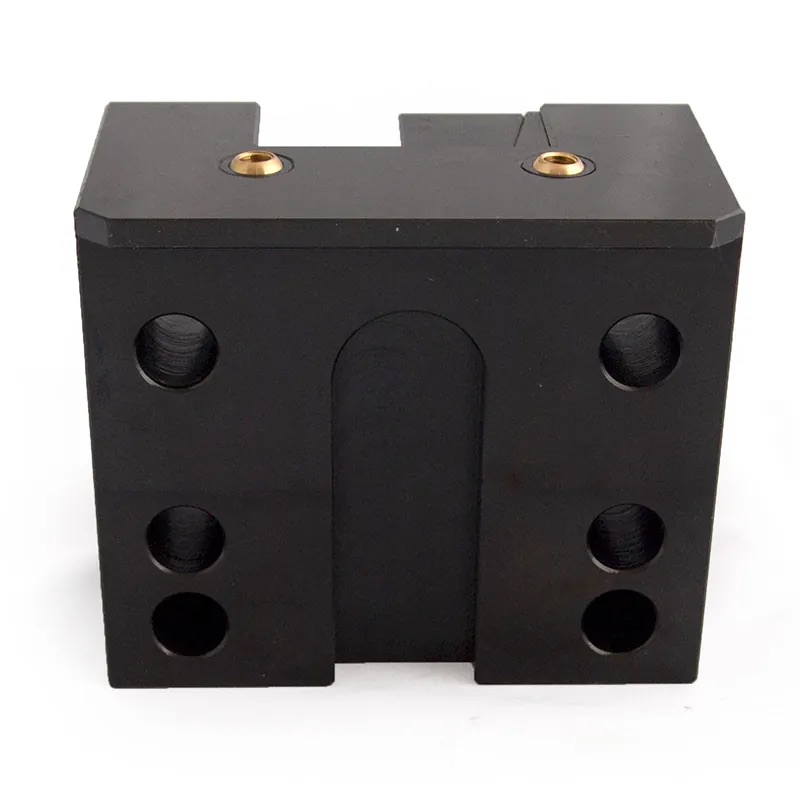

Bolt-on block with a 35 x 76 mm bolt pattern for turning tools with a 25 x 25 mm square shank, clamped by an M10 screw. Tool seat parallel to the spindle axis — for facing, grooving and OD turning. Two externally routed coolant channels. For DMG MORI CL, SL, ZL, DL, DURATURN and Goodway GS, GA with a BOT turret.

€189.97 incl. taxes

€276.70

Retail price as of 11.03.2026

2 unitab Lager Berlin (BE)

Product Attributes

Technical Description

Reviews

Turret Type

BOT 35 x 76

Toolholder Type

OD Facing

Square Shank Size, mm

25 x 25

Brand

EASYCUT

Item type

Drehmaschine Werkzeughalter

Technical Description

The holder bolts onto the turret; it has no VDI shank. Fit is decided by the bolt pattern alone: two rows of Ø 13 holes 76 mm apart, plus the 25 H7 key slot in between. You can measure that on your own turret disc before ordering — the drawing below shows the pattern to scale.

The tool seat runs parallel to the spindle axis, so the tool works off the end face: facing, grooving and OD turning. The 25 x 25 mm square shank is clamped by an M10 screw; two coolant channels are routed externally along the holder.

Machines. DMG MORI: CL 200/203, SL 20/25, SL 200/203/204/250, 253/254 (MC, SMD) – 2500Y, ZL/DL 200/250 (MC), DURATURN 2030, 2050, 2550. Goodway: GS 200/260/280, GA 2000/2600, GA 2800/3000, GA 3300/3600. Also suitable for CLB2000B-MT2000 and ZT2500-DURATURN2550.

Dimensions

Dimension drawing of BOT 35 x 76 facing tool block, 25 x 25 mm, with bolt pattern

Bolt pattern	35 x 76 mm
Tool seat	25 x 25 mm
Clamping screw	M10
Key slot	25 H7
Coolant channels	2, external
Weight	3.0 kg
