BOT 35 x 76 Boring Bar & Indexable Drill Block, Ø 50 mm, 40 mm Centre Height

Name: BOT 35 x 76 Boring Bar & Indexable Drill Block, Ø 50 mm, 40 mm Centre Height
Brand: EASYCUT
SKU: KMS-T10044
Price: 191.48 EUR
Availability: InStock

KMS-T100442 unit in stock

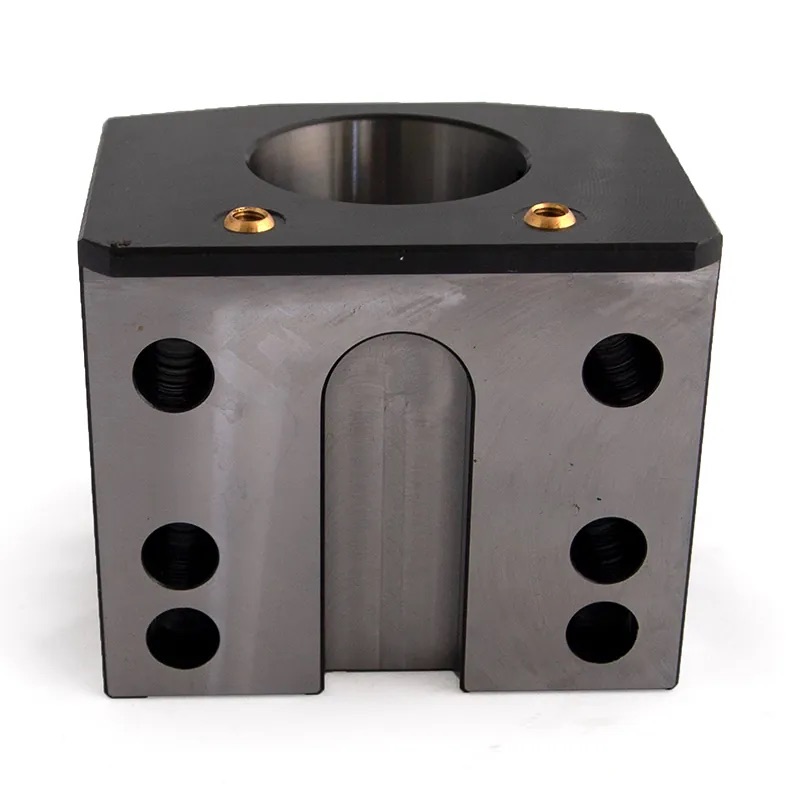

Bolt-on block with a 35 x 76 mm bolt pattern: Ø 50 H7 bore for round-shank boring bars and indexable drills, 40 mm centre height, two externally routed coolant channels. For DMG MORI CL, SL, ZL, DL, DURATURN and Goodway GS, GA with a BOT turret.

€191.48 incl. taxes

€278.90

Retail price as of 11.03.2026

2 unitab Lager Berlin (BE)

Product Attributes

Technical Description

Reviews

Turret Type

BOT 35 x 76

Toolholder Type

Boring Bars, Indexable Drills

Bore Diameter, mm

Centre Height, mm

Brand

EASYCUT

Item type

Drehmaschine Werkzeughalter

Technical Description

The holder bolts onto the turret; it has no VDI shank. Fit is decided by the bolt pattern alone: two rows of Ø 13 holes 76 mm apart, plus the 25 H7 key slot in between. You can measure that on your own turret disc before ordering — the drawing below shows the pattern to scale.

Machines. DMG MORI: CL 200/203, SL 20/25, SL 200/203/204/250, 253/254 (MC, SMD) – 2500Y, ZL/DL 200/250 (MC), DURATURN 2030, 2050, 2550. Goodway: GS 200/260/280, GA 2000/2600, GA 2800/3000, GA 3300/3600.

The Ø 50 H7 bore takes round-shank boring bars, counterboring tools, drills and tapping tools; reducer sleeves cover smaller shank diameters. Two coolant channels are routed externally along the holder.

Dimensions

Dimension drawing of BOT 35 x 76 boring bar block, Ø 50 mm, with bolt pattern

Bolt pattern	35 x 76 mm
Bore	Ø 50 H7
Centre height	40 ±0.02 mm
Key slot	25 H7
Coolant channels	2, external
Weight	3.5 kg
